Fruit Bag Non Woven Bag Making Machine With Ultrasonic , Bag forming machine

    Buy cheap Fruit Bag Non Woven Bag Making Machine With Ultrasonic , Bag forming machine from wholesalers

    Buy cheap Fruit Bag Non Woven Bag Making Machine With Ultrasonic , Bag forming machine from wholesalers
    • Buy cheap Fruit Bag Non Woven Bag Making Machine With Ultrasonic , Bag forming machine from wholesalers

    Fruit Bag Non Woven Bag Making Machine With Ultrasonic , Bag forming machine

    Ask Lasest Price
    Brand Name : LS
    Model Number : HBL
    Certification : CE
    Supply Ability : 20sets/month
    Delivery Time : Within 30 working days
    • Product Details
    • Company Profile

    Fruit Bag Non Woven Bag Making Machine With Ultrasonic , Bag forming machine


    Fruit Bag Non Woven Bag Making Machine With Ultrasonic , Bag forming machine


    Quick Detail:

    Condition: New
    Material: Non woven bag
    Machine type: Bag forming machine
    Bag Type: Fruit bag
    Taiwan Ultrasonic: Yes
    Flat Bag: Yes
    Voltage : 380v/220v
    Power: 11kw, 13kw, 15kw
    Capacity: 20-120 pcs/min
    Warranty: one year
    Certification: CE


    Description:

    1: This machine adopt pneumatic sealing system, it can make bag have good sealing effect.

    2: All mainly spare parts are imported from abroad, such as Omron reply, CHINT named brand electricalappliances, PLC system from Taiwan. All this things can make sure our machine have good performanceand low power consume.

    3: The mainly ultrasonic sealing device from Taiwan Name brand company, this high quality device can make sure our machine have good bag making effect, and make sure our machine can bearing 24 hours working.

    4: Base on our continuous R&D, this machine absorbing the previously advantage. this new type of machine have more multi-usage. This machine are more easy to operate, low power consume and low reject rate.

    5: About our unique stainless steel guide folding design, this multifunction folding device can make sure the non woven bag have good looking.

    6: Whole machine adopt stainless steel cover. perfect design make our machine have compact structure.


    Specifications:

    Type

    HBL-B600

    HBL-B700

    HBL-B800

    Production speed

    20-120pcs/min

    20-120pcs/min

    20-120pcs/min

    Bag width

    100-800mm

    100-800mm

    100-800mm

    Bag length

    200-480mm

    200-580mm

    200-680mm

    Bag making thickness

    30-100 G.SM

    30-100 G.S.M

    30-100 G.S.M

    Power supply

    380V/220V

    380V/220V

    380V/220v

    Total power

    11KW

    13KW

    15KW

    Overall size

    6200*1650*1800mm

    6200*1650*1800mm

    6200*1850*2000mm


    Application:

    In the process, the full automatic nonwoven bag making machine takes non woven fabric as raw
    Material. This machinery can produce non woven bags of various sizes and shapes, including D cutting flat bag(flat port bag), t-shirt bag(vest bag,d-cut or W-cut), handle loop bag(reticules), drawstring bag, shoes bag(Rope wearing bag) , clothing bag, and other products packaging bags.

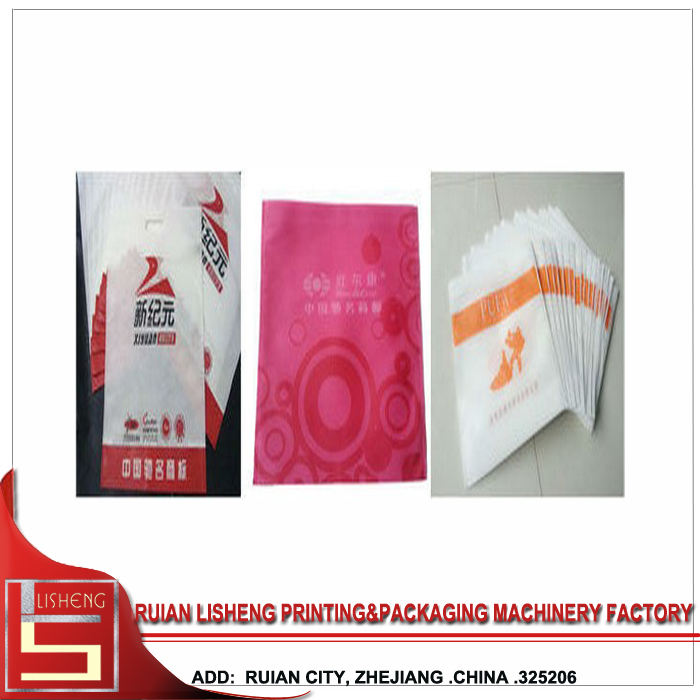

    Our Product Sample Show:





    Quality Fruit Bag Non Woven Bag Making Machine With Ultrasonic , Bag forming machine for sale
