High Speed Non Woven Bag Making Machine With Photocell Tracking

    Buy cheap High Speed Non Woven Bag Making Machine With Photocell Tracking from wholesalers

    Buy cheap High Speed Non Woven Bag Making Machine With Photocell Tracking from wholesalers
    • Buy cheap High Speed Non Woven Bag Making Machine With Photocell Tracking from wholesalers

    High Speed Non Woven Bag Making Machine With Photocell Tracking

    Ask Lasest Price
    Brand Name : LS
    Model Number : RT
    Certification : CE
    Supply Ability : 20sets/month
    Delivery Time : Within 30 working days
    • Product Details
    • Company Profile

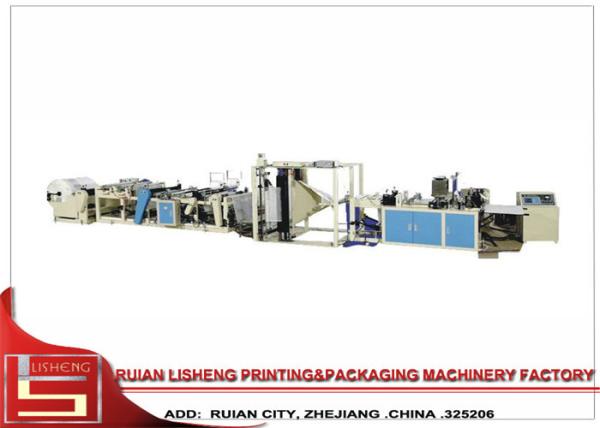

    High Speed Non Woven Bag Making Machine With Photocell Tracking


    High Speed Non Woven Bag Making Machine With Photocell Tracking


    Quick Detail:

    Condition: New
    Material: Non woven bag
    Machine type: Bag forming machine
    Bag type: Shopping bag
    Power: 10 kw
    Capacity: 20-80 pcs/min
    Voltage: 380 v
    Computerized: Yes
    Warranty: one year
    Automatic: Full Automatic
    Certification: CE / ISO


    Description:

    1,The machine is controlled by micro-computer, and it adopts stepping motor to feed materials.

    2,The machine fixes the length at random, and has accurate and stable photoelectric tracking. If any
    missing bags, it will stop running automatically.

    3,It has Automatic Air Pressure Punching and automatic thermostat, and it has automatic stopping while
    the materials are not in regular work.

    4,It has automatic counter and can set the counting alarm.

    5,The material feeding is controlled by photo-electricity, and it can automatically rectify the deviation while locating the materials.

    6,The bottom of bag is welded in roll-type by ultrasonic to ensure the substance and stability.

    7,It is suitable for making Non-woven vest (t-shirt)bag, Non-woven flat bag, Non-woven flat with handle bag Non-woven rope(shoes) bag etc. (Add puncher for vest bag, handle making and welding bag machine for flat with handle bag).


    Specifications:

    Model

    RT-B600

    RT-B600

    RT-B600

    Products

    Flat bags

    T-shirt bags

    Rope bags

    Material Width (mm)

    1300

    1300

    1300

    Speed (pcs/min.)

    20-80

    20-80

    20-80

    Bag Weight (gsm)

    25-100

    25-80

    25-60

    Bag Width (cm)

    10-60

    20-45

    10-45

    Bag Length (cm)

    15-59

    30-60

    15-59

    Voltage (v)

    380/220

    380/220

    380/220

    Power (kw)

    10

    10

    10

    Weight (kg)

    1900

    1900

    1900

    Size (mm)

    9700x1800x1800

    9700x1800x1800

    9700x1800x1800



    Application:

    This is a Multifunctional non-woven fabric bag making machine, whole machine can produce soft non-woven fabric packaging, such as Non-woven vest bag, flat bag, reticule, shoes bag, Leisure bag, shopping bag, environmental protection bag etc. it is an ideal and effective bag making equipment.


    Our Product Sample Show:




    Quality High Speed Non Woven Bag Making Machine With Photocell Tracking for sale
