high speed Automatic Bag Making Machine for Shopping bag , 380V
Power
Quick Detail:
Model NO. HLC
Condition: New
Machine Type: Sealing Machine
Bag Type: Shopping bag
Power Supply: 380V
Computerized: Yes
Warranty: One year
Max. Speed: 200pcs/min
Certificate: CE, ISO Certificate
Description:
1 The machine adopt Micro-computer PLC control,step motor
material-feeding.
2 Freely length-fixed;printing length-fixed photoelectric
tracking;precision,smooth,Auto stop when lost 3 bags.
3 Auto computer meter-counting;Freely setting alarm numerical
value. Auto electric heating constant temperature, Pneumatic
punching in-phase.
4 Main unit frequency adjusting speed;Auto gluing,static surface
dispel;
5 Raw material PP and PE are both open side of, crevasse changed
side gluing, insert bottom, folding pillow bag, both side folding
handle bag.
6. A piece of BOPP pearly-luster membrane ultrasonic hobbing, Auto
error correction, magnetic powder brake, auto stop when material
finished.
7 Auto tidy up feeding bag.
8. Main Machine Is Made By:channel steel,steel plate.
Specifications:
Model | HLC500 | HLC600 | HLC700 | HLC800 | HLC1000 | HLC1100 | HLC1300 |
Max.Length of Making Bag(mm) | 45-400/ (25-300) | 45-400 | 45-400 | 60-500 | 100-500 | 100-500 | 150-500 |
Mas.Width of Making Bag(mm) | 100-450 | 100-550 | 100-650 | 100-750 | 300-950 | 300-1050 | 100-1250 |
Bag-Making Speed (pcs/min) | 30-200 | 30-200 | 30-200 | 30-180 | 20-140 | 20-140 | 30-200 |
Power Supply(V) | 220V | 220V | 220V | 220V | 380V | 380V | 380V |
Total Power(kw) | 4.5 | 5.0 | 5.5 | 6.0 | 6.5 | 6.5 | 8.5 |
Machine Weight(Kg) | 650 | 700 | 800 | 850 | 950 | 950 | 1100 |
Machine Dimension(mm) | 4600x1100 x1800 | 4600x1100 x1800 | 4600x1100 x1800 | 4600x1100 x1800 | 4600x1650 x1800 | 4600x1750 x1800 | 4600x1100 x1800 |
Incasement Weight(kg) | 750 | 800 | 900 | 950 | 1100 | 1200 | 1300 |
Applications:
This machine is suitable for heat and cut material OPP,CPP,PP,PE,POF,PVC etc;It’s necessary for producing market needed clothes bag,socks bag,towel bag,bread bag,cosmetic bag,stationery
bag,plastic side sealing packing bag, etc.
Plastic Bag Making Machine/Plastic Bag Machine/Bag Making Machine
Price

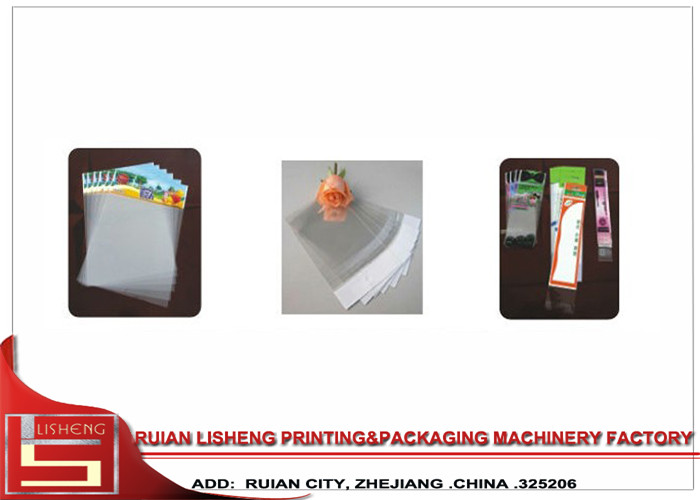

Our Product Show:
