Automatic 80m / Min Paper Flexo Printing Machine For Printing
Envelopes

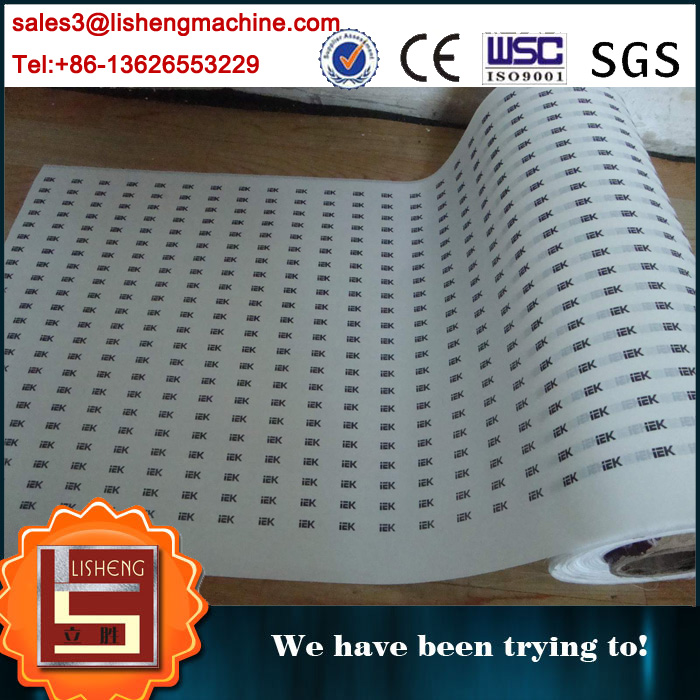

Printing Sample picture for printing envelopes
Use:
This YTB-21000 high speed 2 colors paper roll flexo printing
machines manufactured by lisheng printing company, is suitable for
printing such packing materials as polyethylene, polyethylene
plastic bag glass paper and roll paper etc. And it is a kind of
ideal printing equipment for producing paper packing bag for food,
supermarket handbag, vest bag and clothes bag, etc.
Characteristics:
- Reasonable structure, advanced technology, easy operation, stable
performance, accurate color
- register.
- Adopting high-quality motor, high-quality inverter, save the
electricity, reduce the run fluctuation.
- When the machine is stopped working, printing rolls still keep
moving; when rise the printing roller ,
- ink motor running automatically ;when fallen the printing roller,
ink motor stop running automatically.
- The machine is equipped with blower and heater; and the heater
employed central temperature
- control system.
- .The use of individual drying oven and cold wind system can
effectively prevent the ink adhesion
- after printing.
- .Roller adopts special steel processing, and through special
treatment, greatly reduce the beating
- range.
- Printing roller uses static balance and dynamic balance processing,
hard anode oxidation treatment,
- small resistance, beating small, achieves finally perfect printing
effect.
- .Accurate printing effect achieved by special gear transmission
device.
- The printing machine all can choose advance configurations to
achieve the high quality, the high-
- definition effect.
SUITABLE MATERIAL:
Kraft paper:40-350g/㎡ single-sided coated paper:30-350g/㎡ copy
paper:15-350g/㎡ firecrackers and paper:40-350g/㎡ paper money and
incense:25-350g/㎡ silicone paper:50-350g/㎡ coated paper:30-350g/㎡
dust-free paper:25-350g/㎡Release paper:40-350g/㎡ composite
paper:30-350g/㎡ |
woven:15-120g/㎡ Weave fabric:15-500g/㎡ |
PVC:10-120g/㎡ OPP:10-120g/㎡ PE :10-120g/㎡PET:
10-120g/㎡CPP:10-120g/㎡ |
Main parameter:
Technical Specification |
Model | YTB-21000 |
Material feeding width | 1000mm |
Max Printing Width | 960mm |
Material | Non-woven fabric. Paper. Film. Aluminium foil. PVC. OPP.PE.BOPP.PE.NY.PET.CPP. |
Thickness of plate | 1.7mm 2.28mm 3.94mm |
Printing length | 280-1000mm |
Printing speed | 80m/min |
Register precision | ±0.03mm |
Feeding material part:
1 , roller length: 1000mm
2, e ffective printing roller length: 960mm
3, roller core diameter: 76mm
4, discharge maximum diameter: 1000mm
Printing sections:
1, printing consists of: plate roller, ceramic anilox roller,
rubber roller, doctor blade
2, plate roller circumference: 100-1000mm, standard less than 400mm
3, print material: resin plate or rubber plate
4, Transmission: 0 helical gear drive
5, printing chromatography: 360-degree rotation
6, adjustment method: Manual
7, rise and fall of plate roller: Hydraulic
Electrical parts:
1, Main Motor: 2.2kw
2, Ink Motor: 0.75kw
3, Speed using frequency converter control
Rewinding Part:
1, roll core diameter: 76mm
2, discharge maximum diameter: 1000mm
Here is some detail picture below.Hope can make you know more about
our machine.
Details:
Plate roller 1, standard 400mm for machine , making 2, plate range 191--1000mm. 3, Made in plate factory from Ruian city 4, Can be customized. |
|
Rubber Roller
1 ,Transport the ink to Anilox roller
|
|
Auto tension control &magnetic power
1, Control un&rewind parts balance material both side.
|
|
Air shaft 1, tight to material ,flat material , better printing
|
|
Web guide 1, Swift tracking print photo . 2, We have Ultrasonic web guide this year.(pay extra money)
|
|
Doctor Blade 1, Not spill the ink Equip with ink pump, even the ink Also have enclosed doctor blade |
|
Ink pump 1, Suck the ink automatically 2, Adop the automatic circle system. |
|
Ceramic Anilox Roller 1, Transfer ink evenly, improve the printing effect. 2, 300-600 lines/in |
|
hydraulic Up and down for printing roller 1, Adopt the hydraulic pressure rising and down the printing plate automatically |
|
The main list of detailed configuration
The main list of detailed configuration Remark:the main motor and key parts can change which brand as your
request. |
1. Main motor(frequency control of motor speed):1pc (China brand) 2. Link operation motor: 1pc (China brand) 3. Control speed motor: 1pc (China brand) 4.Inverter of main motor:1set(China) 5.Air fan (shanghai feng yang brand) 6. Ceramic dictyonotic roller:1pc/color(china brand) 7. Auto tension:1set(shanghai) 8. Air shaft: 1set(rui an brand of China) 9. Aluminum roller: 1set(shanghai,surface oxidation, motion and quietness equalization treatment) 10.Magnetic power:1set (rui an) 11. Rubber roller:1pc/color ( our factory) 12. low-voltage apparatus:(CHNT) 13. Switch: CHNT 14. bearing:1set (China) 15. EPC system:1set (dong deng) |
Optional Optional Device(need extra money to get perfect machine)
Optional device(need extra money to get perfect machine) |
1. PLC Control |
|
2. Auto pneumatic/hydraulic loading&unloading. - It is easy to transport material.
|
|
3. Joist barrow It’s easy to lift the materials |
|
4. Video Inspection Check the printing quality on the video screen. |
|
