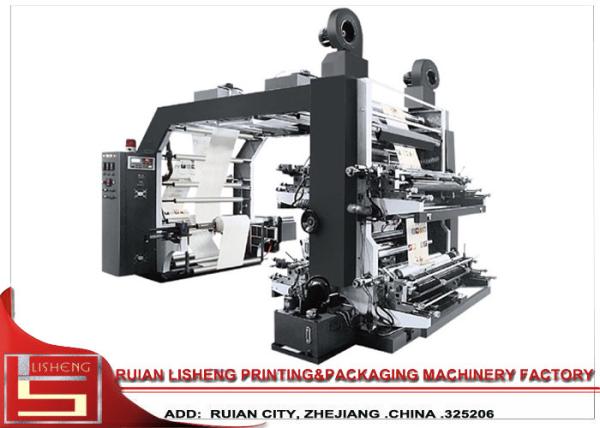

YTB - 41000 1000mm Low Noise Flexo Printing Machine For Paper Bags
Printing Sample picture
Use:
This machine is suitable for printing such packing materials as
polyethylene, polyethylene plastic bag
glass paper and roll paper etc. And it is a kind of ideal printing
equipment for producing paper packing
bag for food, supermarket handbag, vest bag and clothes bag, etc.
Characteristics:
- Reasonable structure, advanced technology, easy operation, stable
performance, accurate color
- register.
- Adopting high-quality motor, high-quality inverter, save the
electricity, reduce the run fluctuation.
- When the machine is stopped working, printing rolls still keep
moving; when rise the printing roller ,
- ink motor running automatically ;when fallen the printing roller,
ink motor stop running automatically.
- The machine is equipped with blower and heater; and the heater
employed central temperature
- control system.
- .The use of individual drying oven and cold wind system can
effectively prevent the ink adhesion
- after printing.
- .Roller adopts special steel processing, and through special
treatment, greatly reduce the beating
- range.
- Printing roller uses static balance and dynamic balance processing,
hard anode oxidation treatment
- , small resistance, beating small, achieves finally perfect
printing effect.
- .Accurate printing effect achieved by special gear transmission
device.
- The printing machine all can choose advance configurations to
achieve the high quality, the high-d
- efinition effect.
SUITABLE MATERIAL:
Kraft paper:40-350g/㎡ single-sided coated paper:30-350g/㎡ copy
paper:15-350g/㎡ firecrackers and paper:40-350g/㎡ paper money and
incense:25-350g/㎡ silicone paper:50-350g/㎡ coated paper:30-350g/㎡
dust-free paper:25-350g/㎡Release paper:40-350g/㎡ composite
paper:30-350g/㎡ |
woven:15-120g/㎡ Weave fabric:15-500g/㎡ |
PVC:10-120g/㎡ OPP:10-120g/㎡ PE :10-120g/㎡PET:
10-120g/㎡CPP:10-120g/㎡ |
Main parameter:
Technical Specification |
Model | YTB-41000 |
Material feeding width | 1000mm |
Max Printing Width | 960mm |
Material | Non-woven fabric. Paper. Film. Aluminium foil.
PVC.OPP.PE.BOPP.PE.NY.PET.CPP. |
Thickness of plate | 1.7mm 2.28mm 3.94mm |
Printing length | 280-1000mm |
Printing speed | 80m/min |
Register precision | ±0.03mm |
Feeding material part:
1 , roller length: 1000mm
2, effective printing roller length: 960mm
3, roller core diameter: 76mm
4, discharge maximum diameter: 1000mm
Printing sections:
1, printing consists of: plate roller, ceramic anilox roller,
rubber roller, doctor blade
2, plate roller circumference: 100-1000mm, standard less than 400mm
3, print material: resin plate or rubber plate
4, Transmission: 0 helical gear drive
5, printing chromatography: 360-degree rotation
6, adjustment method: Manual
7, rise and fall of plate roller: Hydraulic

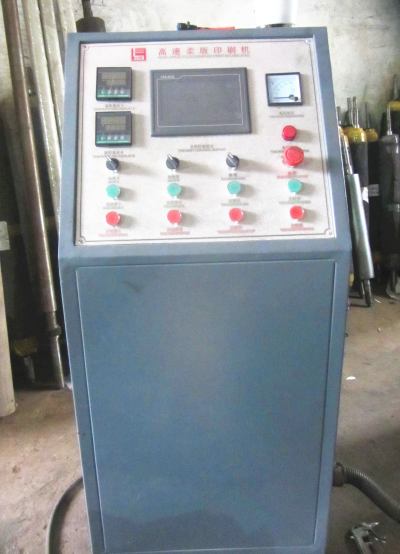

Electrical parts:
1, Main Motor: 2.2kw
2, Ink Motor: 0.75kw
3, Speed using frequency converter control
Rewinding Part:
1, roll core diameter: 76mm
2, discharge maximum diameter: 1000mm
Here is some detail picture below.Hope can make you know more about
our machine.
Details:
Plate roller 1, standard 400mm for machine , making 2, plate range 191--1000mm. 3, Made in plate factory from Ruian city 4, Can be customized. |
|
Rubber Roller
1, Transport the ink to Anilox roller
|
|
Auto tension control &magnetic power
1, Control un&rewind parts balance material both side.
|
|
Air shaft 1, tight to material ,flat material , better printing
|
|
Web guide 1, Swift tracking print photo . 2, We have Ultrasonic web guide this year.(pay extra money)
|
|
Doctor Blade 1, Not spill the ink Equip with ink pump, even the ink Also have enclosed doctor blade |
|
Ink pump 1, Suck the ink automatically 2, Adop the automatic circle system. |
|
Ceramic Anilox Roller 1, Transfer ink evenly, improve the printing effect. 2, 300-600 lines/in |
|
hydraulic Up and down for printing roller 1, Adopt the hydraulic pressure rising and down the printing plate automatically |
|
The main list of detailed configuration
The main list of detailed configuration Remark:the main motor and key parts can change which brand as your
request. |
1. Main motor(frequency control of motor speed):1pc (China brand) 2. Link operation motor: 1pc (China brand) 3. Control speed motor: 1pc (China brand) 4. Inverter of main motor:1set(China) 5. Air fan (shanghai feng yang brand) 6. Ceramic dictyonotic roller:1pc/color(china brand) 7. Auto tension:1set(shanghai) 8. Air shaft: 1set(rui an brand of China) 9. Aluminum roller: 1set(shanghai,surface oxidation, motion and
quietness equalization treatment) 10. Magnetic power:1set (rui an) 11. Rubber roller:1pc/color ( our factory) 12. low-voltage apparatus:(CHNT) 13. Switch: CHNT 14. bearing:1set (China) 15. EPC system:1set (dong deng) |
Optional Optional Device(need extra money to get perfect machine)
Optional device(need extra money to get perfect machine) |
1.PLC Control |
|
2.Auto pneumatic/hydraulic loading&unloading. - It is easy to transport material.
|
|
3.Joist barrow It’s easy to lift the materials |
|
4.Video Inspection Check the printing quality on the video screen. |
|
